The power cable is used in electric transmission and distribution system operating at rated voltage of 0.6/1KV, 1.8/3KV, 3.6/6KV, 6/6KV, 6/10KV, 8.7/10KV, 8.7/15KV, 12/20KV, 21/35KV, 26/35KV.
The quality of our producton is perfect and we can produce and design cables as per IEC,BS,DIN,ASTM/ANSI and any requirements of the customers.
1.The Rated Voltage for armoured power cable(kv):
first class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35 second class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35
2.Applicationfor armoured power cable:
These cables are most suitable for direct burial or for installation on trays or ducts, Where there is a risk of mechanical damage, armoured cables should be used.

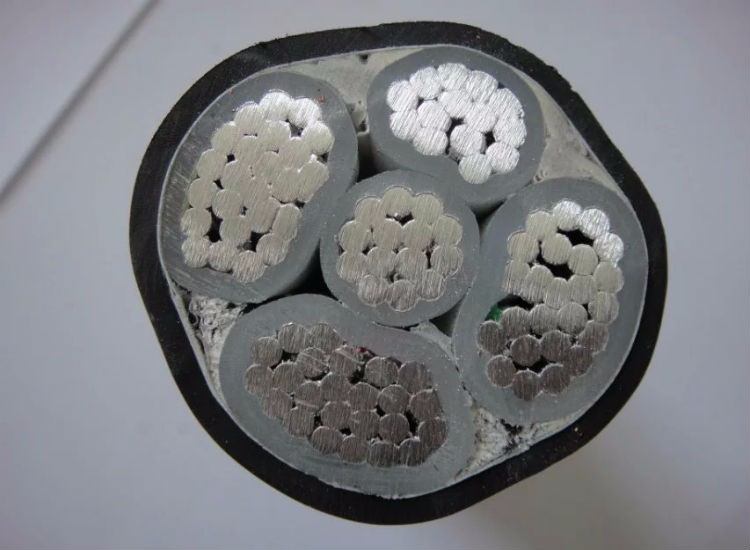

3.Construction for armoured power cable:
YJV23 YJLV23 8.7/15kV
aluminum Copper(aluminum)conductor or conductor screen
XLPE insulation or insulation screen
PVC inner covering
Steel Tape Armoured Power Cable

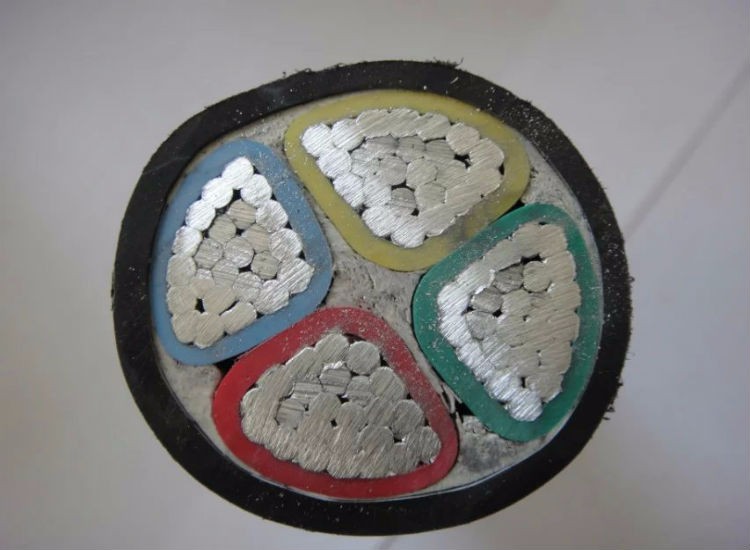

Color for core identification

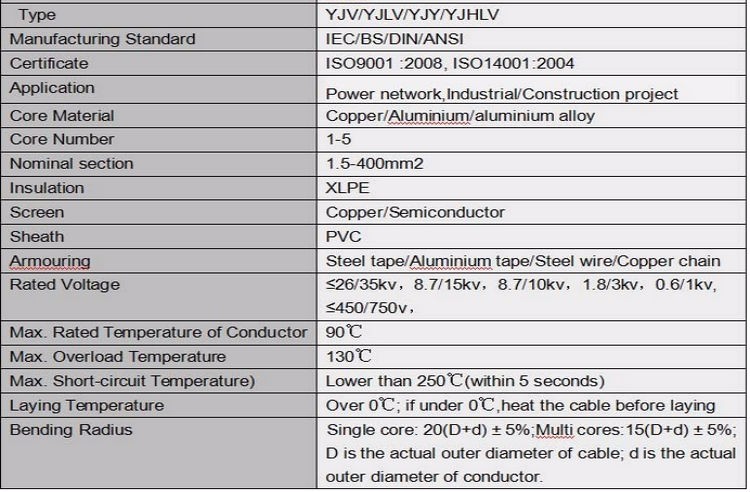

4. Description for YJV22 Steel Tape Armoured Power Cable:
No of Core and Range of sectional Area (mm2) 1 Core 1.5-800 25-800 25-1200 25-1200 35-1200 50-1200 50-1200 50-1200 2 Core 1.5-185 25-185 3 Core 1.5-400 25-400 25-400 25-400 35-400 50-400 50-400 50-400 4 Core 2.5-400 25-400 5 Core 2.5-400 25-400

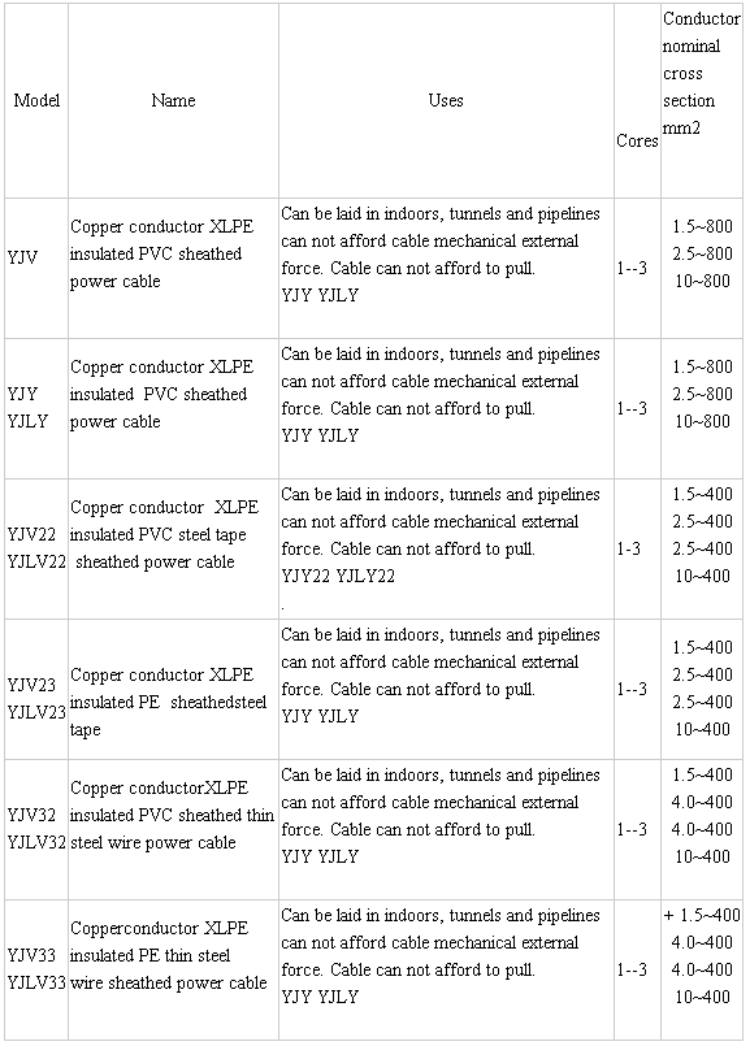

5.The Type and Main Application (1) YJV YJY YJLV YJLV XLPE insulated, PVC or PE Sheathed Power Cable For laying indoor, tunnel, channel and undergroud, Unable to bear external mechanical force, but bear the traction force during laid (2)YJV22 YJV22 YJLV22 YJV22 XLPE Insulated, Steel Tape Armoured, PVC or PE Sheathed Power Cable For laying indoor, tunnel, channel and undergroud Able to bear external mechanical force, but unable to bear large pulling force (3)YJV32 YJV32 YJLV32 YJLV32 XLPE Insulated, Fine Steel Wire Armoured, PVC or PE Sheathed Power Cable For laying in shaft with large difference of level. Able to bear external machanical force and maderate pulling force (4)YJV42 YJV42 YJLV42 YJLV42 XLPE Insulated, Thick Steel Wire Armoured, PVC or PE Sheathed Power Cable Able to bear positive pressure and pulling force
Henan Xunda Cable Co.,Ltd. was established in 2001 which has rich experience in development and production of electric wires and cables. It is located in the high-tech industrial zone of Gongyi City in Henan province and covers an area of 50000m2. Henan Xunda Cable Co.,Ltd. has more than 120 employees including 20 experienced senior technical staffs and more than 10 advanced cable production lines. Henan xunda has introduced high-speed wire drawing, stranding equipments which can produce AAC, ACSR and AAAC 100 tons each day. The company is equipped with a full range of high-precision testing equipments in order to ensure that the products can meet the related standard and the clients’ demands.
Our product includeACSR,AAC,AAAC,ACAR,Copper wire,Galvanized steel wire, building wire,PVC power cable, XLPE power cable, ABC cable,rubber cable,Flexible cable,control cable ect.Our products have been exported toDubai ,Yemen,Southeast Asia,Africa.Our products have passedISO9001,ISO14001,OHSAS18001,CCC qualification and IEC certificate. We can produce according to different standards like GB,IEC,ASTM,BS,AS, CSA.
