16,50mm2 PVC insulation with copper solid and stranded conductor cable chinese standard bv wire

FOB Reference Price:Get Latest Price
US $0.5-4.6 / Meters | 10000 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
xinda
Model Number:
BV
Type:
Other
Application:
building
Conductor Material:
PVC insulation with copper conductor
Conductor Type:
Solid
Insulation Material:
none
Product name:
Copper Core PVC Insulated Electric Wire
Certification:
CCC/CE/ISO9001
Color:
Green Red Yellow Black Green brown
Conductor:
solid and stranded
Rated Voltage:
450/750v
Standard:
chinese standard
manufacture experence:
15 years
company:
manufacturing factory
export market:
global
cross section:
0.5mm2-240mm2
Supply Ability
Supply Ability:
50000 Meter/Meters per Day

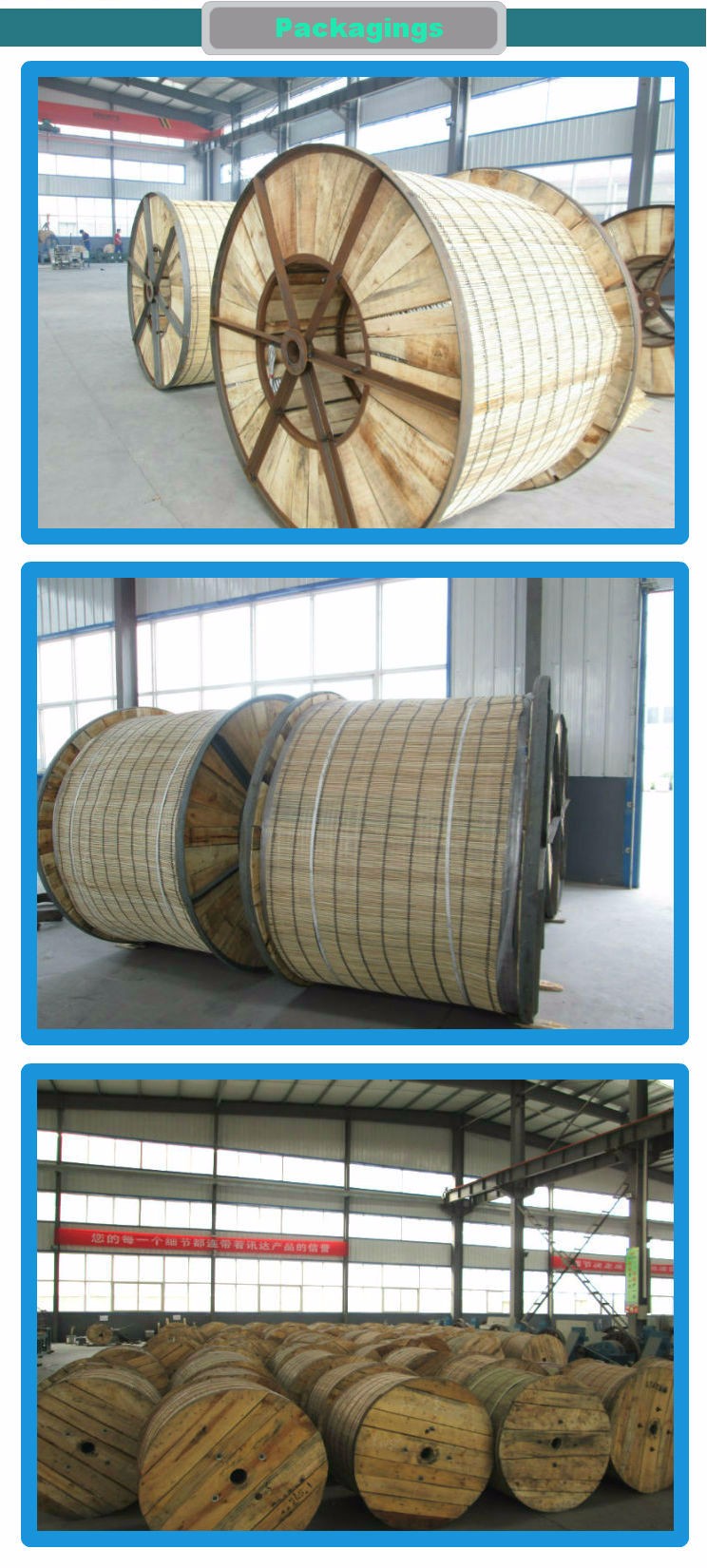

Packaging & Delivery
Packaging Details

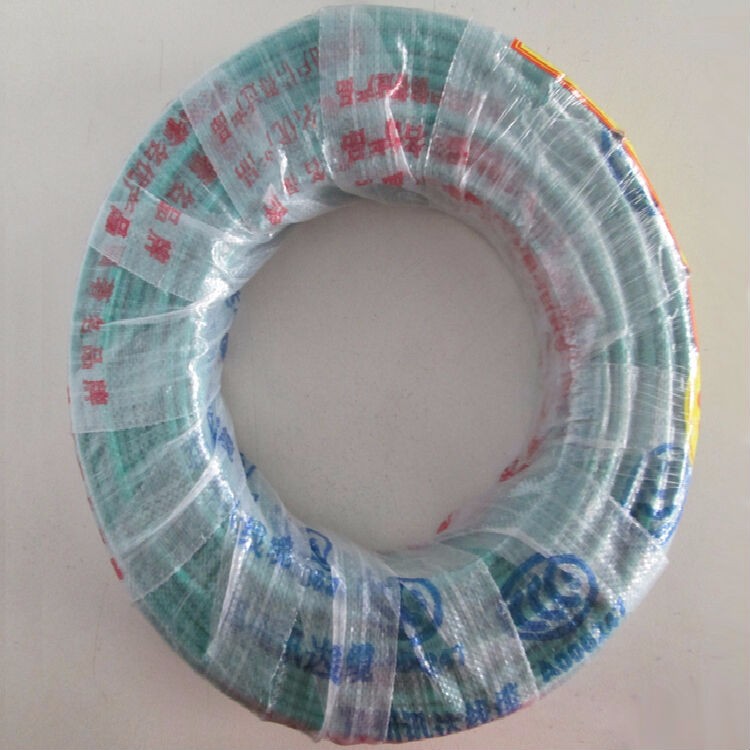

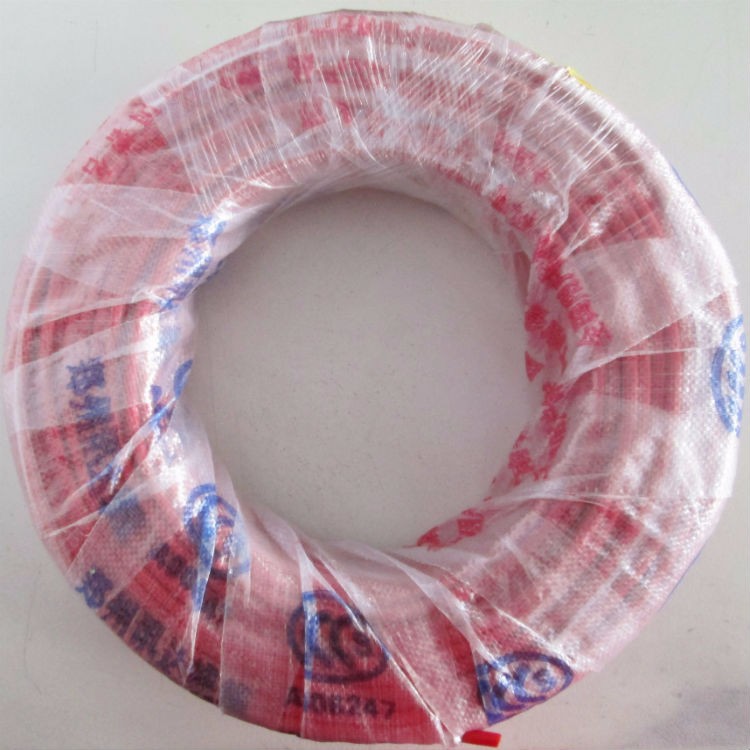

100m/roll or as your requirements
Port
QingDao
Lead Time :
8

bv wire1.png

Copper Core PVC Insulated Electric Wire

Application:  This product is fit for AC rateded voltage 450/750 V and below of domestic electrical appliances,of smaller size motorriace tools,of various meters and motorized lighting installations.

Using features:   Installation temperature not lower than 0℃,and the bending radius should not be less than 10 times of  outer dismeter of cable;

The long-time working temperature of cable should not be higher than 70℃;

 When core is in short-circuit(max 5s)the temperature should not exceed 160℃.

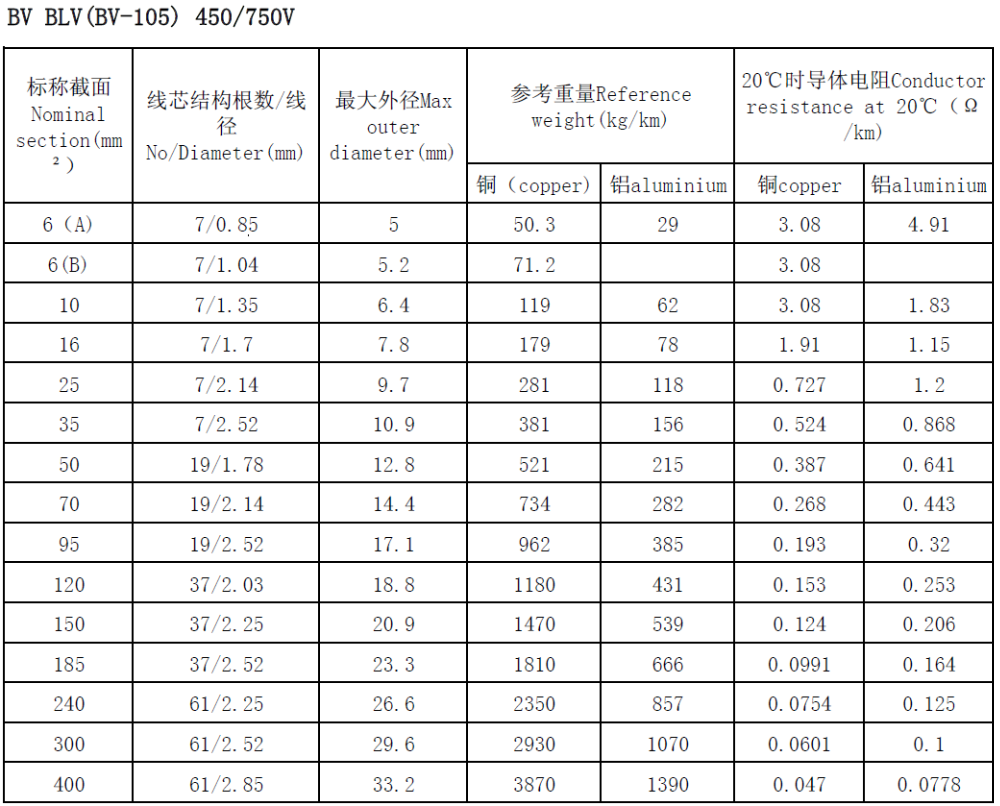

 Nominal cross section area of conductor:  1.5mm2,2.5mm2,4mm2,6mm2,up to 400mm2

 Conductor resistance at 20℃:  copper conductor ≤0.0778-12.1Ω/km,aluminum conductor ≤0.0470-11.80Ω/km

bv wire2.png

bv wire3.jpgbv wire3.pngbv wire4 .jpg

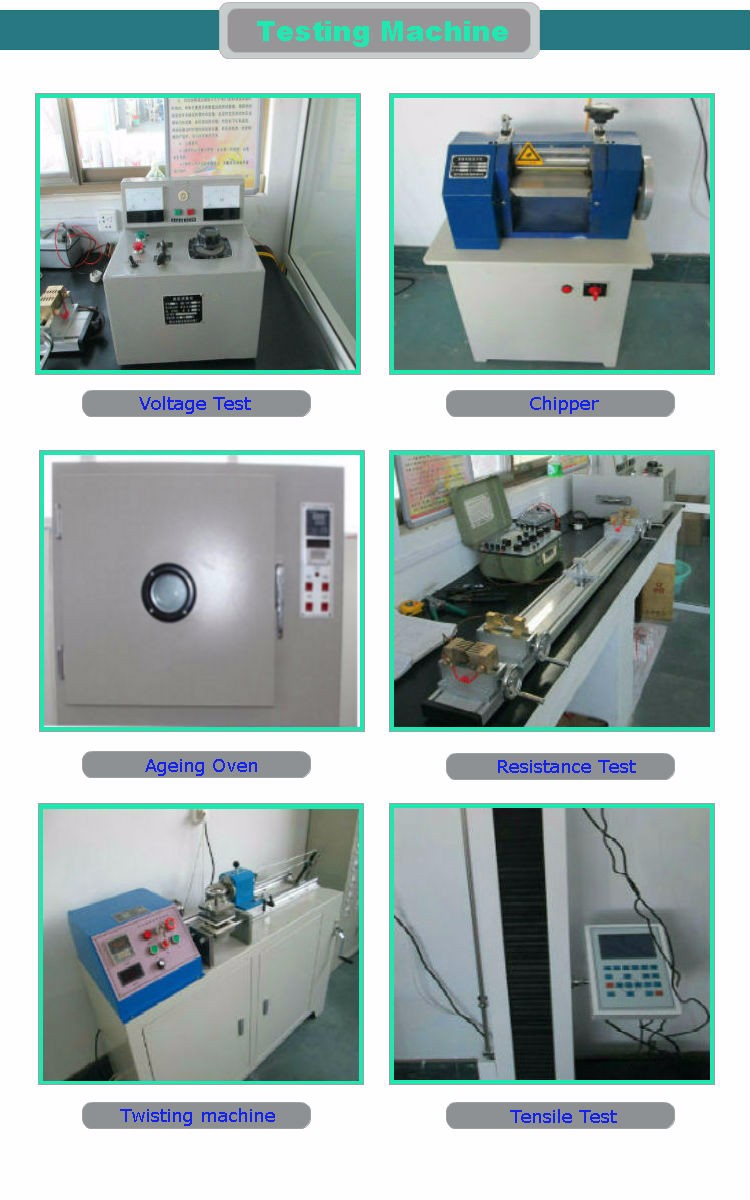

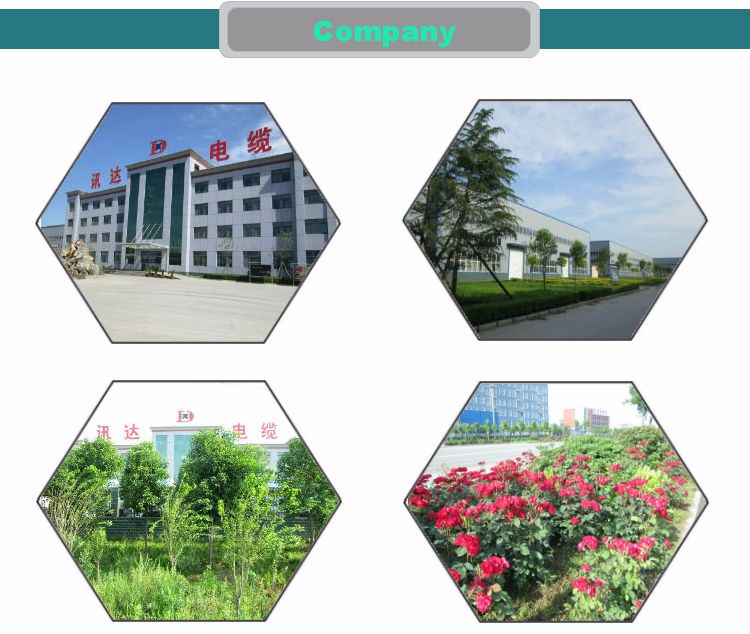

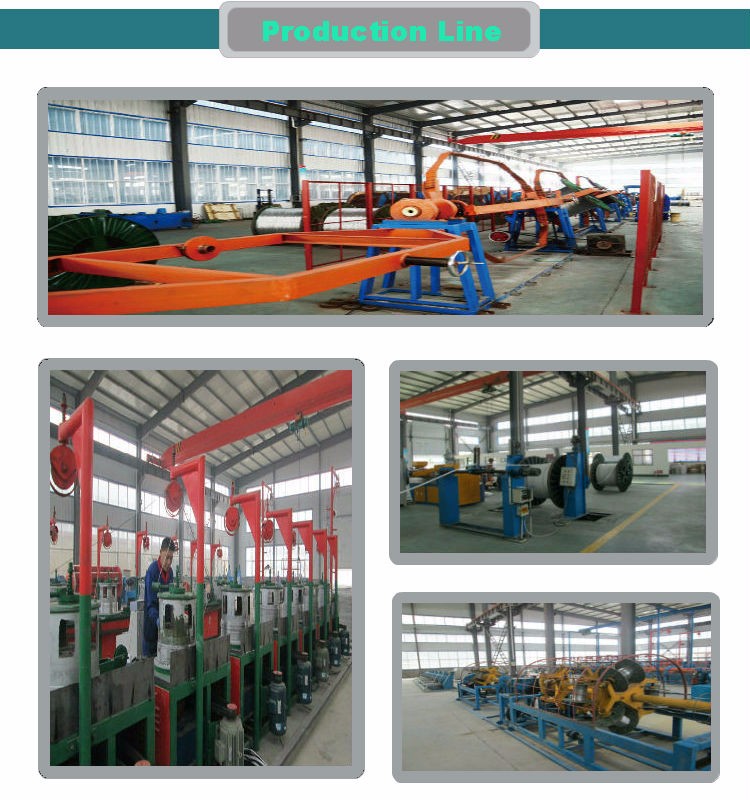

Henan Xunda Cable Co.,Ltd. was established in 2001 which has rich experience in development and production of electric wires and cables. It is located in the high-tech industrial zone of Gongyi City in Henan province and covers an area of 50000m2. Henan Xunda Cable Co.,Ltd. has more than 120 employees including 20 experienced senior technical staffs and more than 10 advanced cable production lines. Henan xunda has introduced high-speed wire drawing, stranding equipments which can produce AAC, ACSR and AAAC 100 tons each day. The company is equipped with a full range of high-precision testing equipments in order to ensure that the products can meet the related standard and the clients’ demands.

Our product include ACSR,AAC,AAAC,ACAR,Copper wire,Galvanized steel wire, building wire,PVC power cable, XLPE power cable, ABC cable,rubber cable,Flexible cable,control cable ect. Our products have been exported to Dubai ,Yemen,Southeast Asia,Africa.Our products have passed ISO9001,ISO14001,OHSAS18001,CCC qualification and IEC certificate. We can produce according to different standards like GB,IEC,ASTM,BS,AS, CSA.
