Agricultural Copper Core PVC Insulated Electrical Power Cable YJV YJV22 YJV23

FOB Reference Price:Get Latest Price
US $5.6-7.3 / Meters | 50000 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
xinda
Model Number:
XLPE
Insulation Material:
xlpe
Type:
High Voltage
Application:
Underground
Conductor Material:
Copper
Jacket:
pvc
Certificate:
ISO9001/CCCC
Product name:
Copper Core PVC Insulated Electrical Power Cable
Standard:
BS IEC ASTM DIN ANSI
Conductor:
Bare Copper
Color:
Black
Armouring:
steel tape,aluminum tape,steel wire,copper chain
Max overload temperature:
130 ℃
Nominal section:
1.5--400mm2
Max Rated Temperature of conductor:
90 ℃
Supply Ability
Supply Ability:
80000 Meter/Meters per Day
Packaging & Delivery
Packaging Details
Steel Wooden Drum,Steel Drum,Wooden Drum for Copper Core PVC Insulated Electrical Power Cable
Port
QingDao China
Lead Time :
10
Product Details

The power cable is used in electric transmission and distribution system operating at rated voltage of 0.6/1KV, 1.8/3KV, 3.6/6KV, 6/6KV, 6/10KV, 8.7/10KV, 8.7/15KV, 12/20KV, 21/35KV, 26/35KV.

The quality of our producton is perfect and we can produce and design cables as per IEC,BS,DIN,ASTM/ANSI and any requirements of the customers.
1.The Rated Voltage for armoured power cable(kv):
first class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
second class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35
2.Applicationfor armoured power cable:
These cables are most suitable for direct burial or for installation on trays or ducts, Where there is
a risk of mechanical damage, armoured cables should be used.
3.Construction for armoured power cable:
YJV23 YJLV23 8.7/15kV
aluminum Copper(aluminum)conductor or conductor screen
XLPE insulation or insulation screen
PVC inner covering
Steel Tape Armoured Power Cable
Color for core identification
ssembly/beding/armoured/outer sheath.
4. Description for YJV22 Steel Tape Armoured Power Cable:
No of Core and Range of sectional Area (mm2)
1 Core 1.5-800 25-800 25-1200 25-1200 35-1200 50-1200 50-1200 50-1200
2 Core 1.5-185 25-185
3 Core 1.5-400 25-400 25-400 25-400 35-400 50-400 50-400 50-400
4 Core 2.5-400 25-400
5 Core 2.5-400 25-400
5.The Type and Main Application
(1) YJV
YJY YJLV
YJLV XLPE insulated, PVC or PE Sheathed Power Cable For laying indoor, tunnel, channel and undergroud, Unable to bear external mechanical force, but bear the traction force during laid
(2)YJV22
YJV22 YJLV22
YJV22 XLPE Insulated, Steel Tape Armoured, PVC or PE Sheathed Power Cable For laying indoor, tunnel, channel and undergroud Able to bear external mechanical force, but unable to bear large pulling force
(3)YJV32
YJV32 YJLV32
YJLV32 XLPE Insulated, Fine Steel Wire Armoured, PVC or PE Sheathed Power Cable For laying in shaft with large difference of level. Able to bear external machanical force and maderate pulling force
(4)YJV42
YJV42 YJLV42
YJLV42 XLPE Insulated, Thick Steel Wire Armoured, PVC or PE Sheathed Power Cable Able to bear positive pressure and pulling force

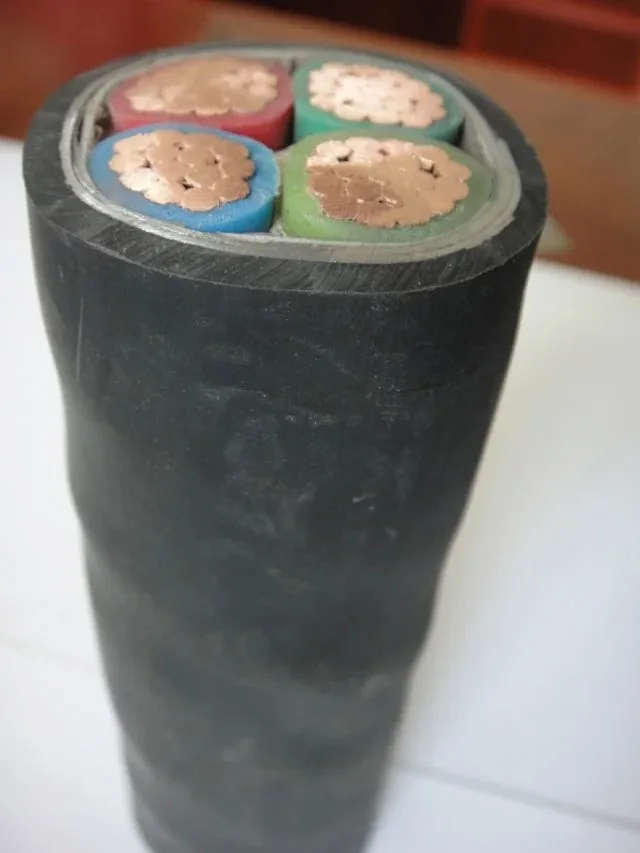

Product Detail Show

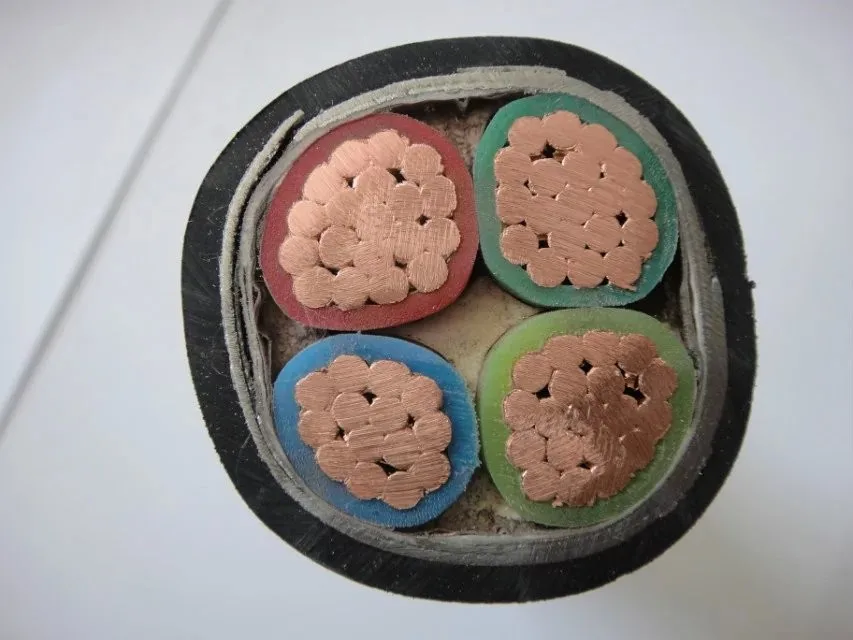

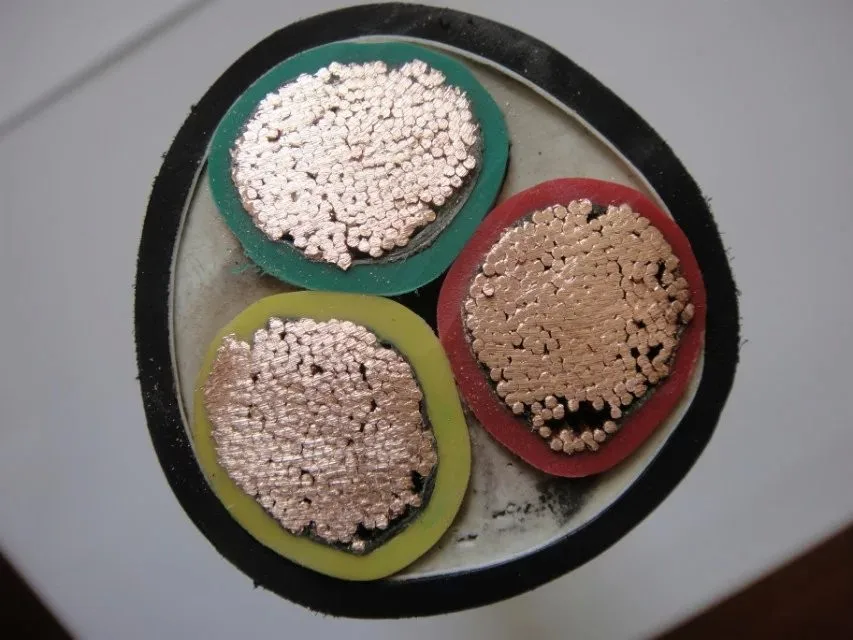

Power cable Structure

The basic structure of power cables by the core (conductor), an insulating layer, a shielding layer and a protective layer of four parts.
1. The core is conductive part of power cable, which is used to transfer power, is the main part of the power cable.
2. Insulation is the line between the core and the earth and the different phase of wire core in the electrical insulated from each other, is an indispensable part in the structure of power cable.
3. Shield  10KV power cable shielding layer and more generally have a conductor shielding layer and an insulating shielding layer.
4. Protective layer  The role of the protective layer is to protect the power cable from the outside world the invasion of the impurities and moisture, and prevent the external force directly damage the power cable.

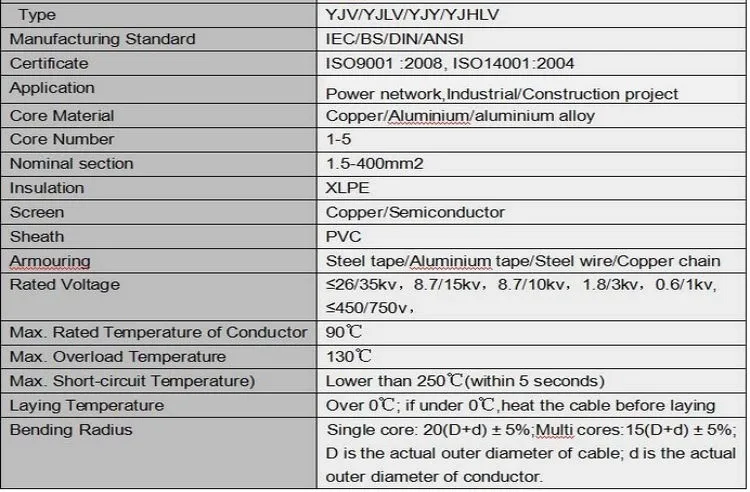

Product Parameters

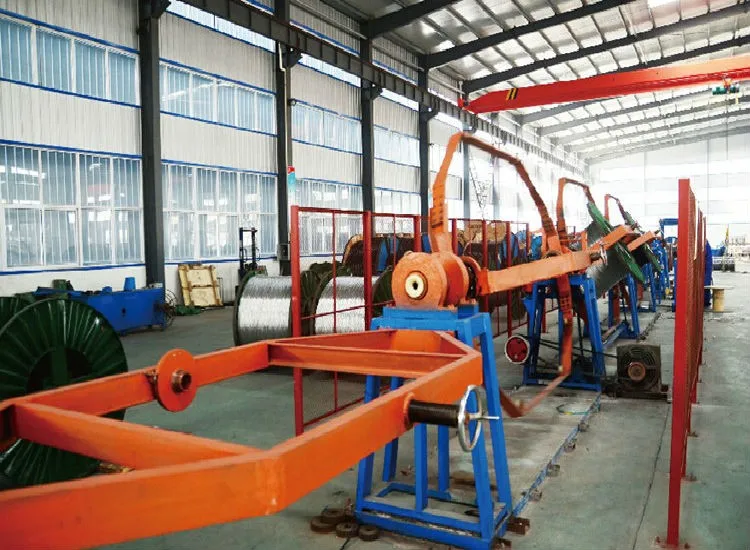

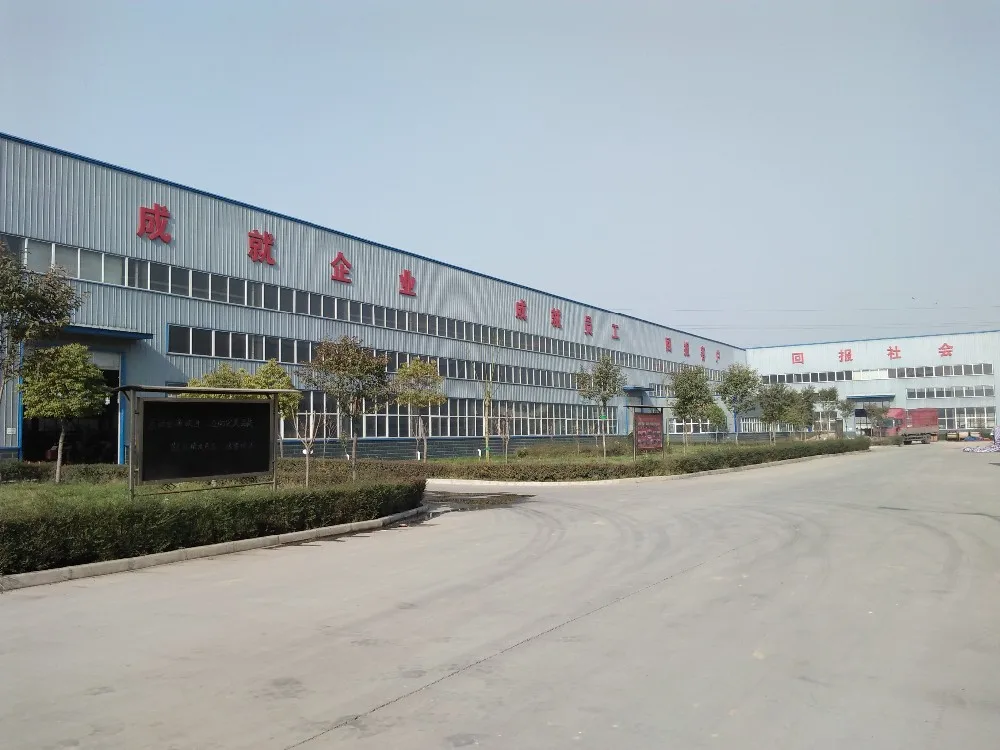

Our Factory Show

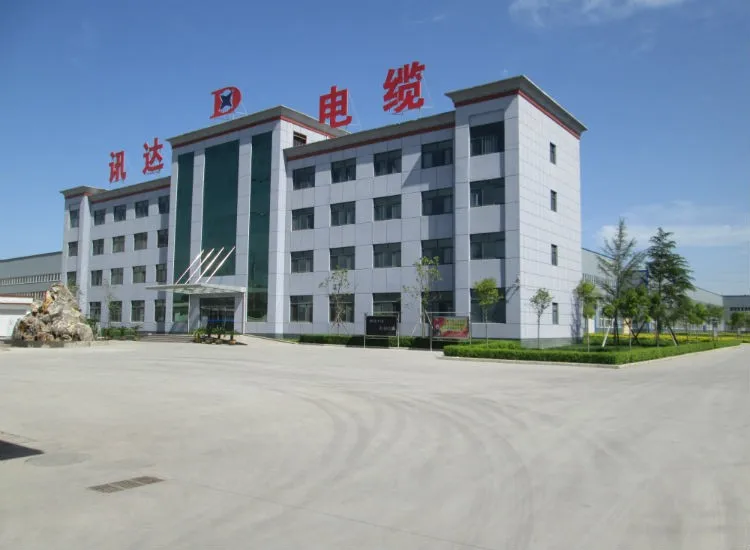

Factory Introduction

        Henan Xunda Cable Co.,Ltd. was established in 2001 which has rich experience in development and production of electric wires and cables. It is located in the high-tech industrial zone of Gongyi City in Henan province and covers an area of 50000m2. Henan Xunda Cable Co.,Ltd. has more than 120 employees including 20 experienced senior technical staffs and more than 10 advanced cable production lines.

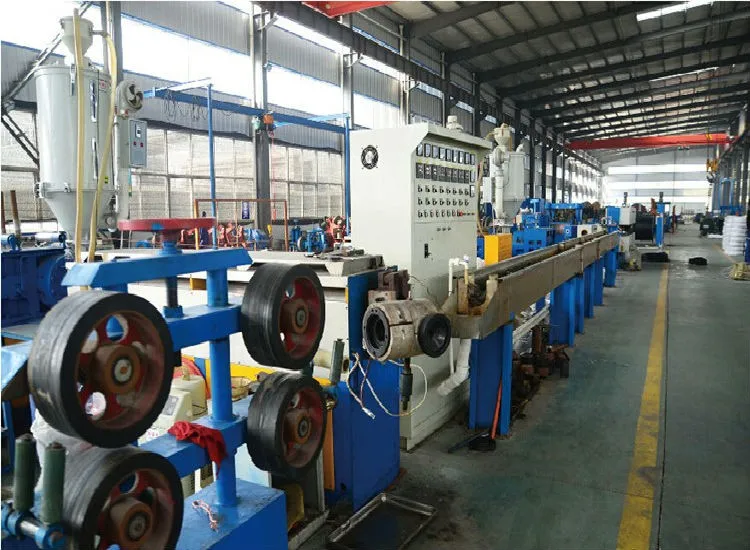

Factory's Development

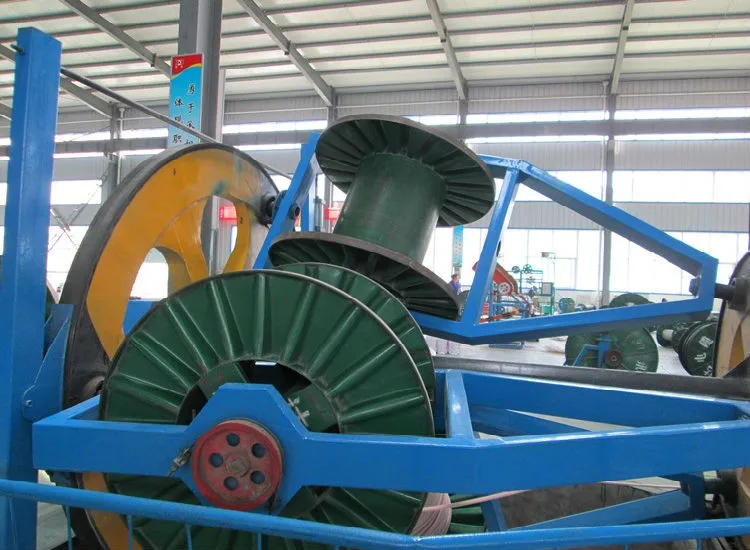

        Henan xunda has introduced high-speed wire drawing, stranding equipments which can produce AAC, ACSR and AAAC 100 tons each day. The company is equipped with a full range of high-precision testing equipments in order to ensure that the products can meet the related standard and the clients’ demands.

Main Product

        Our product include ACSR,AAC,AAAC,ACAR,Copper wire,Galvanized steel wire, building wire,PVC power cable, XLPE power cable, ABC cable,rubber cable,Flexible cable,control cable ect. Our products have been exported to Dubai ,Yemen,Southeast Asia,Africa.Our products have passed ISO9001,ISO14001,OHSAS18001,CCC qualification and IEC certificate. We can produce according to different standards like GB,IEC,ASTM,BS,AS, CSA.

Testing Machine

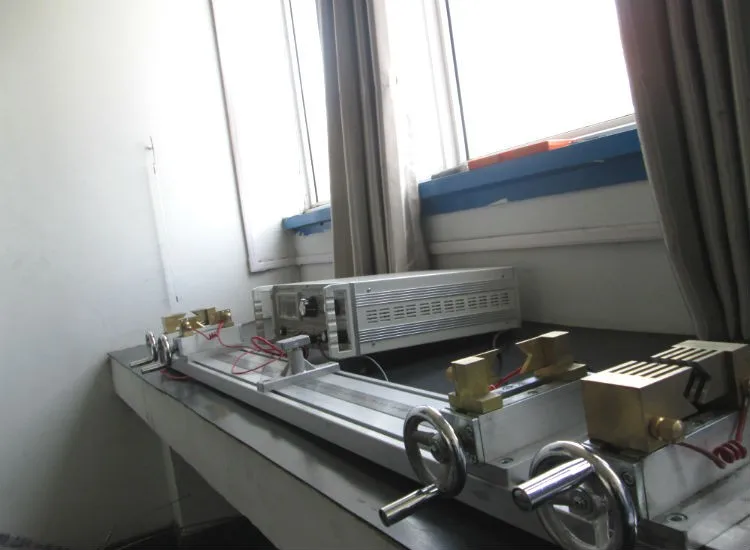

Resistance Test

We are strict at every step of wire testing .

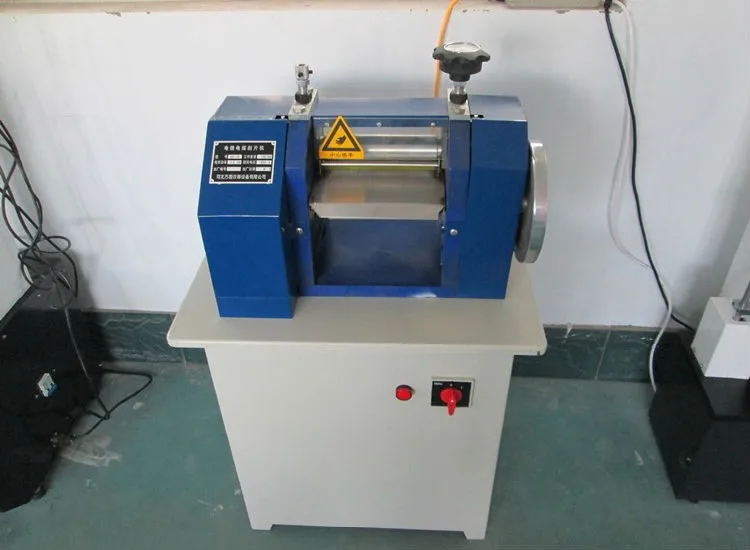

Wire Slicing Machine

Welcome you come and visit our factory

Ageing Oven

We have a good reputation in domestic.

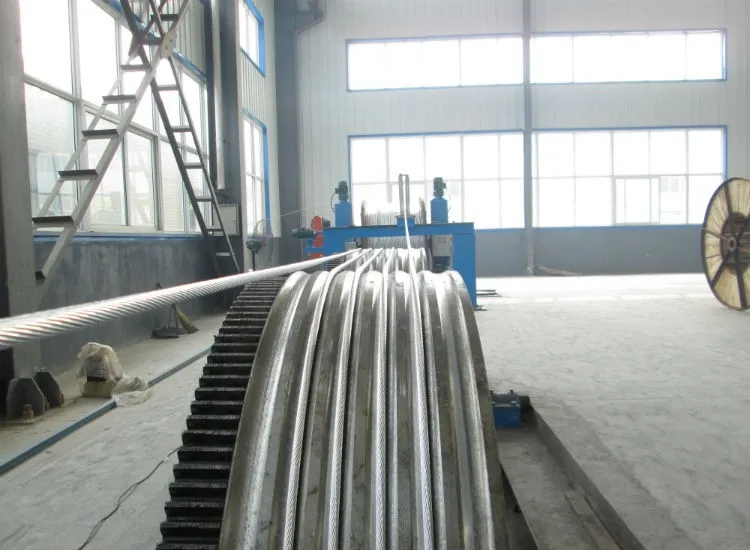

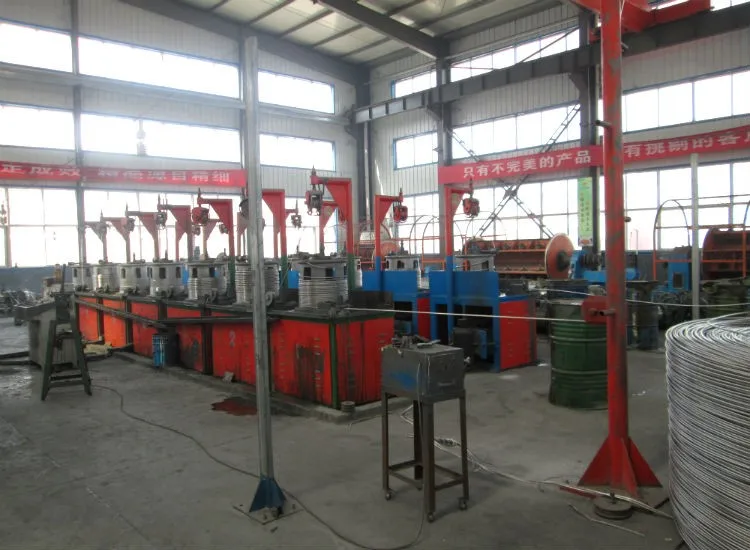

Product Processing
Our every employee are professional at drawing wire&cable .Our factory produce the wire and cable according Chinese standard strictly.And we also can produce product according your standard

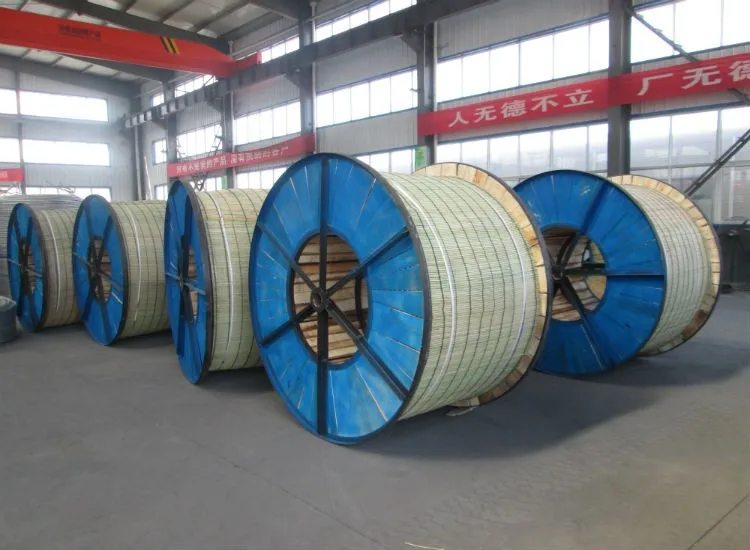

Product Packing

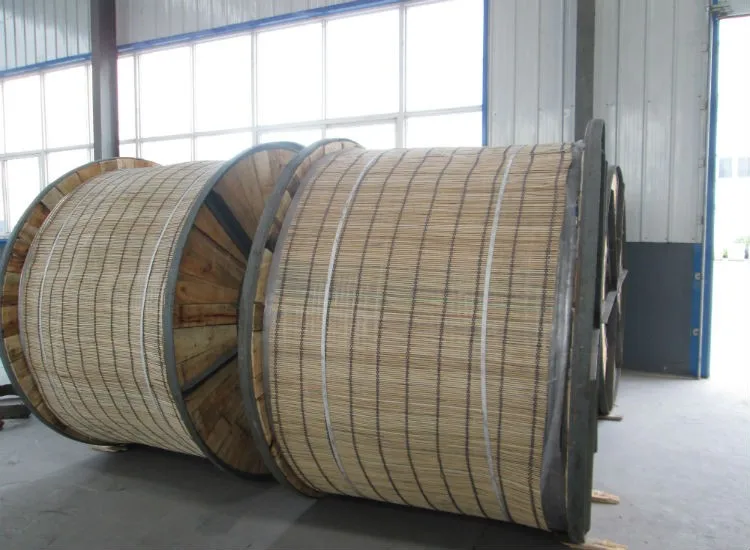

Export Packagings

We will choose the suitable packagings for you,Or according your requirement..We have every size of drum for you
